Packaging cutting machine

DMS special-shaped cutting machine cuts, draws lines, indents, dashed lines, drawings and other processes for packaging materials, instead of traditional carton, color box, paper display rack and other manual development design and proofing, shortening the corresponding development time, fast proofing, The high quality, improve the market competitiveness of carton manufacturers in the proofing process, and achieve the customer's production goals of less batch, multi-order, multi-style, and create a complete set of standardized and feasible solutions. The machine can complete the die cutting, indentation and forming work of flexible materials such as paper products and plastic products without cutting die and die cutting machine, which can save a lot of manpower, die and die cutting machine cost.

包装行业

DMS packaging industry computer proofing machine:

1. Overcut optimization function: Using CAM software independently developed by DMS, system optimization of tool physical overcut phenomenon, maximizing the reduction of graphic contour and bringing perfect cutting effect to customers

2. Intelligent countertop compensation function: the flatness of the countertop is detected by a high-precision distance detector, and the plane is corrected in real time by software to ensure high-quality cutting effect.

3. Positive and negative cutting function: combined with the desktop detection function to realize intelligent positive and negative graphic cutting function

4. Automatic tool setting function: fast and simple automatic tool setting system, using fiber laser sensor to accurately detect the tool and improve the efficiency of tool setting

5. Tool quick change module: simple and efficient tool holder quick change system, making operation easier and convenient

6. Multi-task efficient cycle cutting, intelligent adsorption configuration


Adaptor & Application Materials

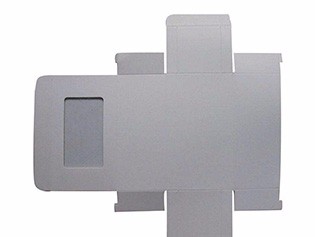

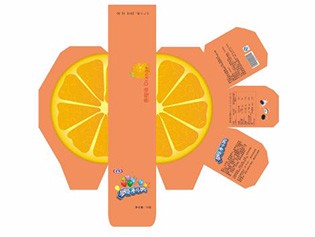

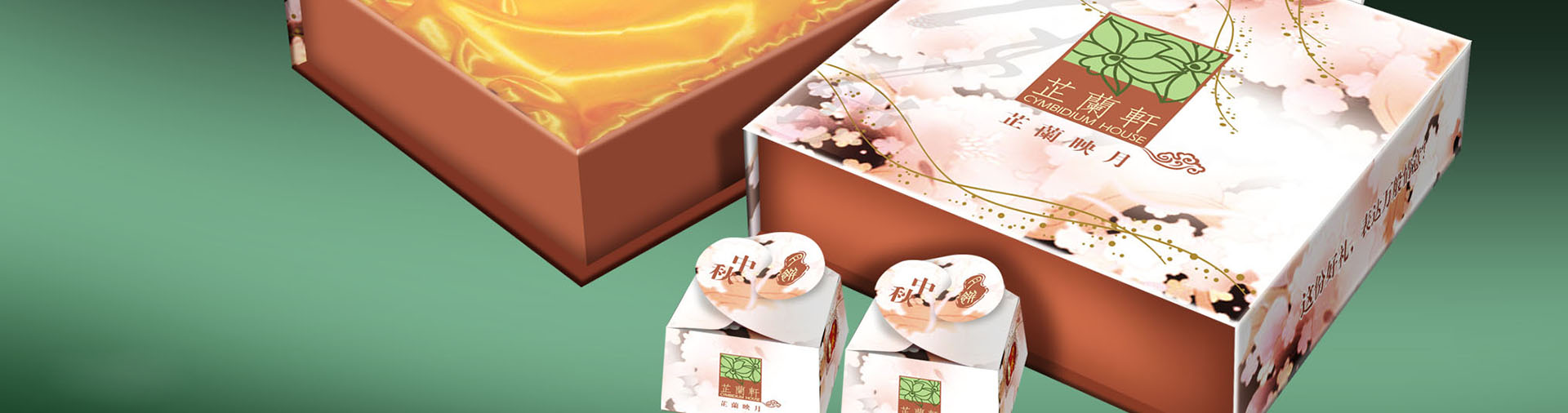

  • paper pack-ups

    paper pack-ups

    Tool selection

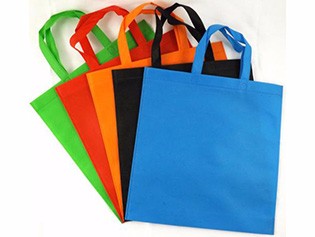

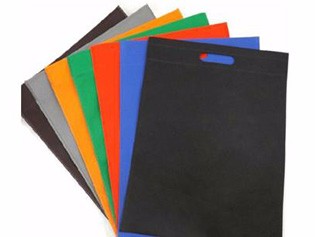

  • Non-woven bags

    Non-woven bags

    Tool selection

  • Non-woven bags

    Non-woven bags

    Tool selection

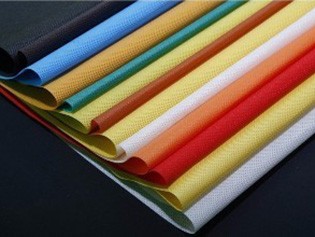

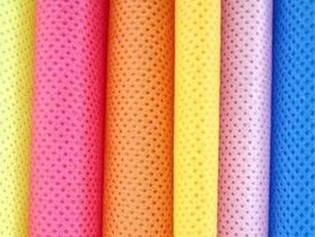

  • Non-woven fabric

    Non-woven fabric

    Tool selection

  • Non-woven fabric

    Non-woven fabric

    Tool selection

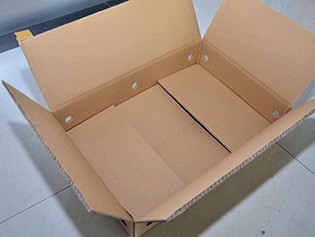

  • Corrugated box

    Corrugated box

    Tool selection

  • corrugated paper

    corrugated paper

    Tool selection

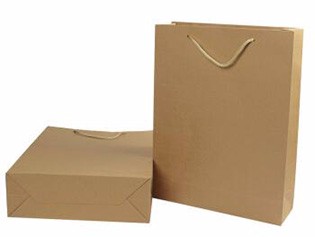

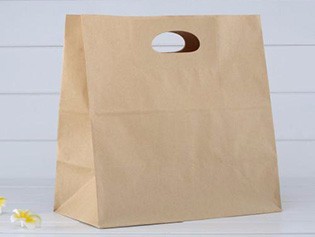

  • Kraft paper bag

    Kraft paper bag

    Tool selection

  • Kraft paper bag

    Kraft paper bag

    Tool selection

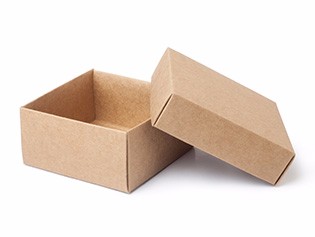

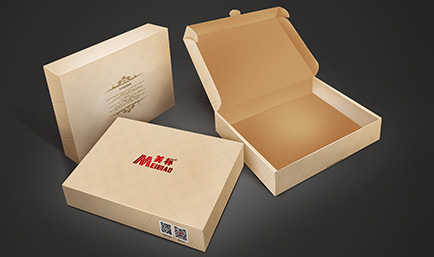

  • Cardboard box

    Cardboard box

    Tool selection

Packaging cutting machine cutting machine hardware advantages
切割机设备
  • Head design

    With a convenient and replaceable head design concept, the tool heads with different functions can be replaced and added according to actual needs.
  • Communication

    The data interface is a Gigabit network interface, which enables remote upgrade and maintenance, and the transmission speed is fast and the distance is long.
  • Countertop

    Adopting advanced and mature rolling table design, aluminum “honeycomb” vacuum adsorption platform maintains a flat cutting platform and improves cutting precision.
  • Control System

    Independent research and development of human-machine interface operating system, humanized design, intelligent recognition of knife cutting, fast capture of cutting targets.
  • Imported felt

    Imported felt, wear-resistant, breathable, ensuring high flatness of the cutting platform.
  • Collision avoidance

    Safety anti-collision system to ensure the safety of operators.

Digital cutting machine software features

DMS digital cutting machine adopts self-developed CAM software, and user requirements are perfectly integrated into software design. It is a fully automatic intelligent cutting system that combines the three advantages of performance, speed and quality, which can complete full cutting, half cutting, boring and milling, and quickly. Various processes such as punching, crease, marking, etc., the operation is simple and convenient, the function is rich and practical, and the tool quick change module can meet the customization requirements of the user.

绘图软件特点 切割机软件特点

Schematic diagram of the cutting process

电脑切割机流程示意图

 Packaging cutting machine cutting Technical Parameters

Main technical parameters of the equipment

Technical parameters / model DMS-2516A
Multi-function Tools can be easily changed, with ornamental engraving, milling, vibration cutting, half cutting and creasing, drawing, the cursor position and optional precise camera position
Safety device Using infrared sensors, respondive, safe
Moving speed 800-1500mm/s
Cutting speed 200-1200mm/s(according to different cutting materials)
Cutting thickness 40mm(More than 40mm can be customized
Material Fixed Vaccum System
Cutting tolerance ±0.05mm
Servo resolution ±0.01mm
 Transmission interface Ethernet
Network transmission distance ≤350 m
Buffer capacity 2GB
Transmission system Import (Digital servo motor、Linear guide、Synchronous belt、Screw、Gear)
Normal power 7.5-11KW
Voltage 380V± 10%
Working Range 2500×1600mm
Max feeding width 1600mm
Product size 3521×2186×1280mm
Packing Size 3670×2340×1500mm
Gross Weight 1150KGS
